6” DTH Hammer DHD360/SD6/QL60/COP64//MISSION60

Application: Mining blasting hole drilling, micropile drilling, water well drilling, Geothermal drilling, construction

Email info@bitschina.et
WhatsApp +86 15076382950

Send Email Download

Details

Parts List
1	Top Sub
2	Top sub ring
3	Check valve
4	Spring
5	Shock ring
6	Air distributing seat
7	Inner cylinder
8	Piston
9	Outer cylinder
10	Bush Drive sub
11	O ring for chuck ring
12	Chuck ring
13	Chuck sleeve
Technical Specification
Hammer Model		YH6H
Bit Shank		DHD360
Foot Valve		With foot valve
Connection Thread		API 3 1/2” REG Pin
Hammer OD		148mm
Hammer Length (without bit)		1163.5mm
Bit Range		152-190mm
Weight		100kg
Air consumption at18Bar		22m³/min
Work pressure		15-30Bar

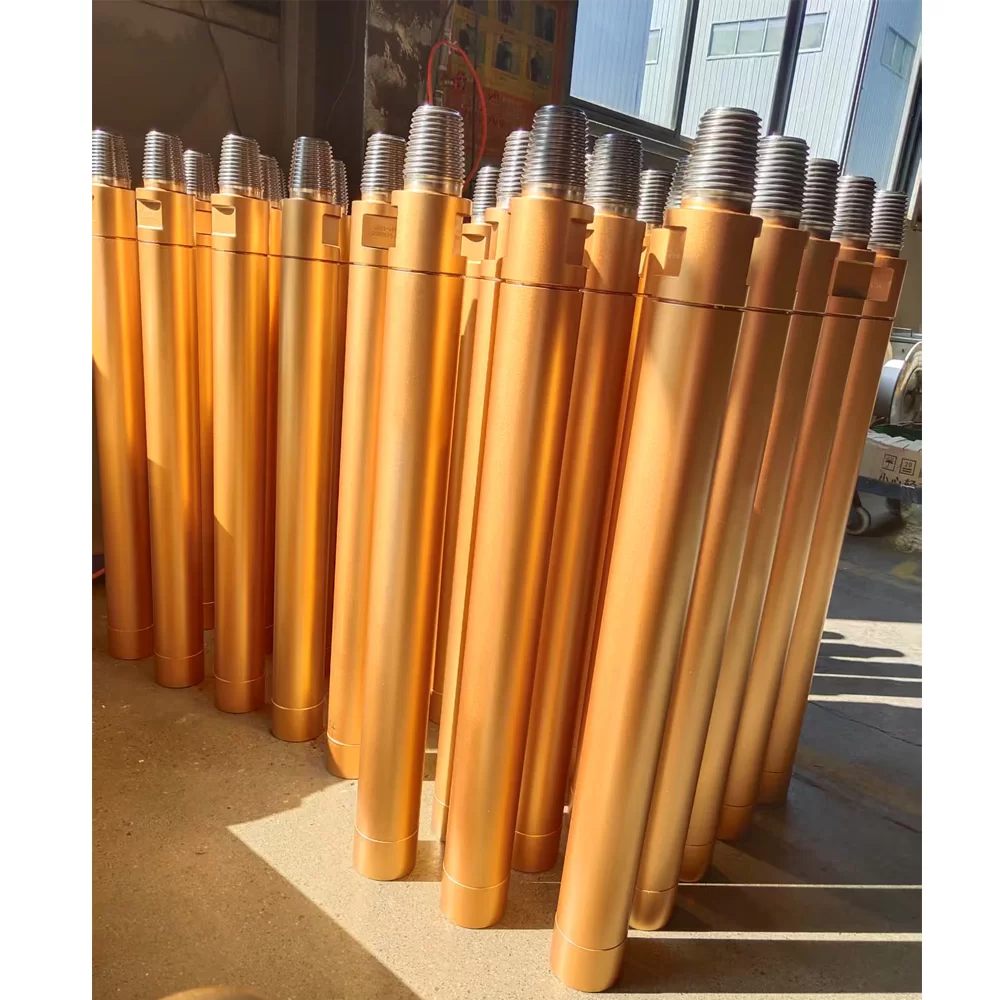

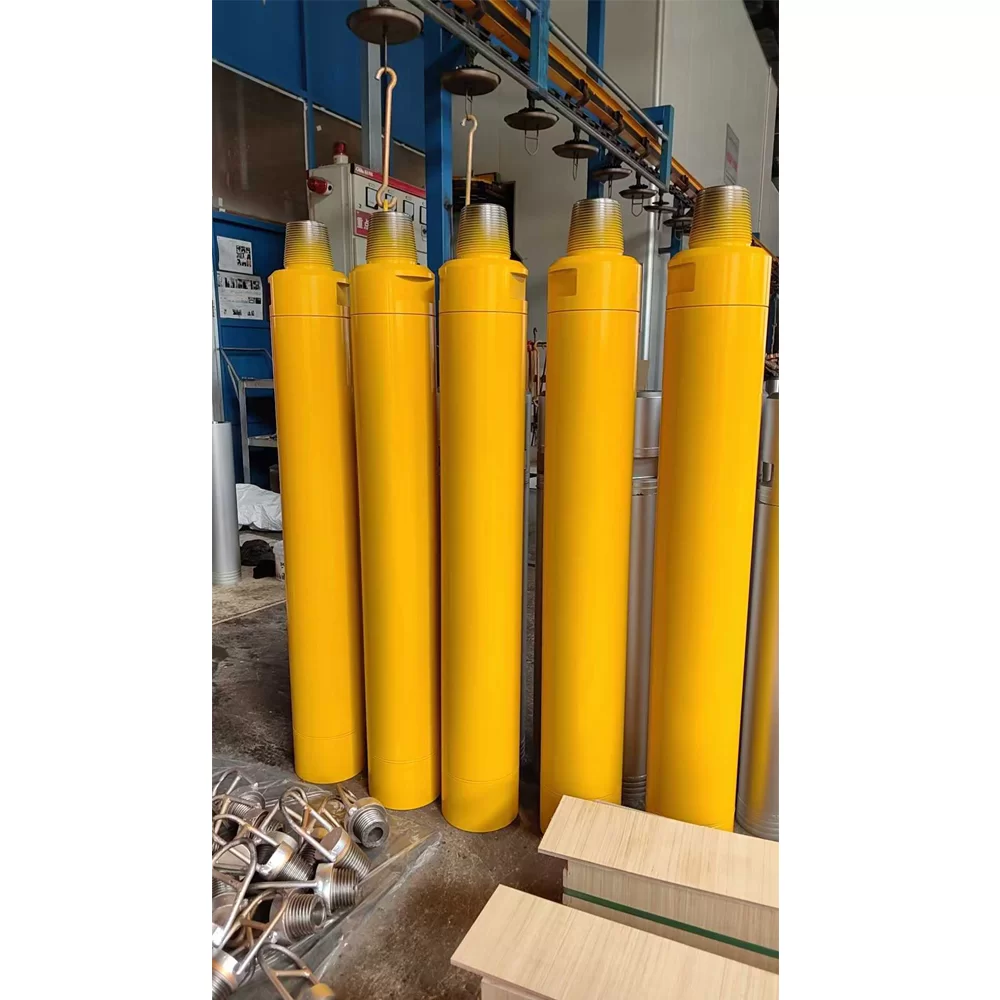

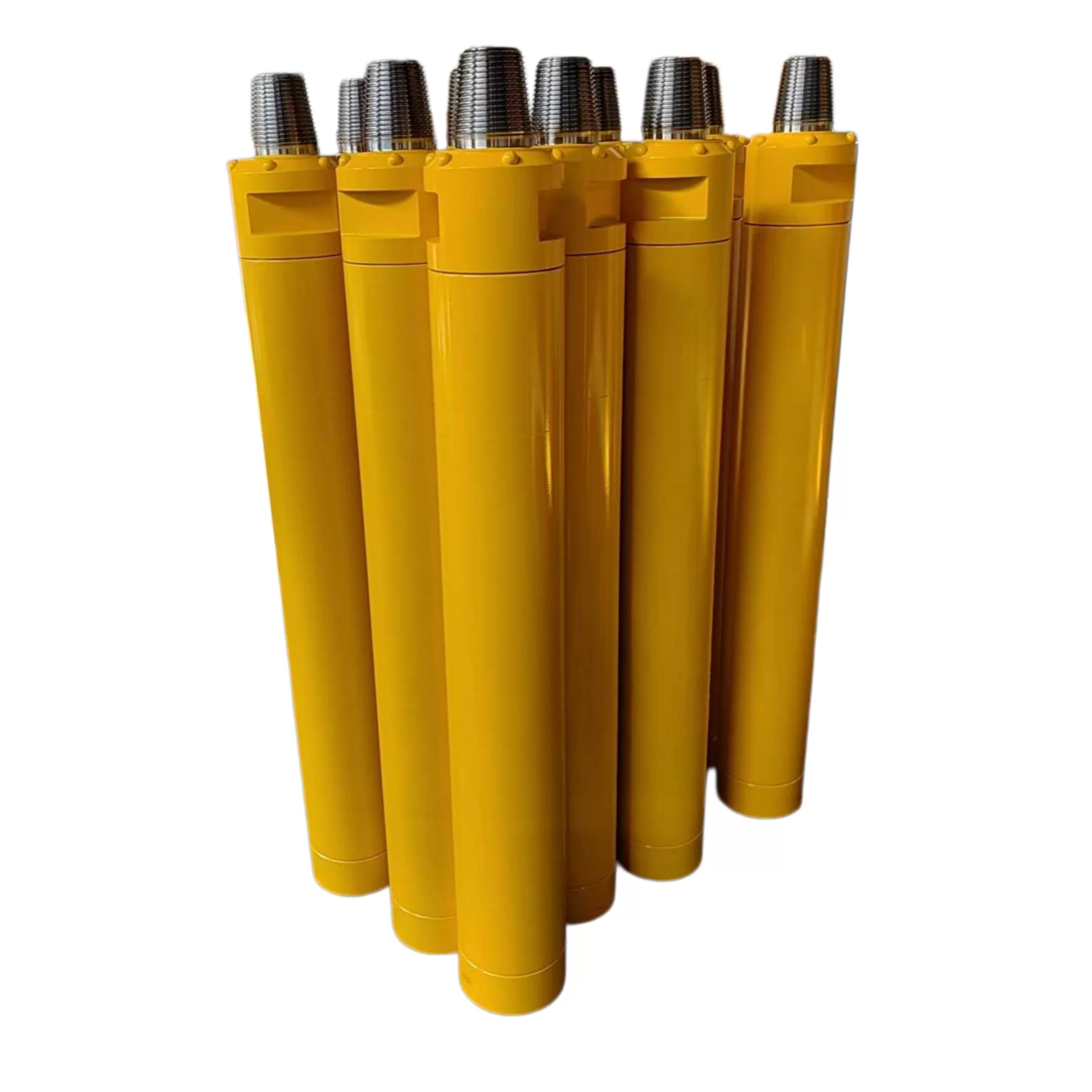

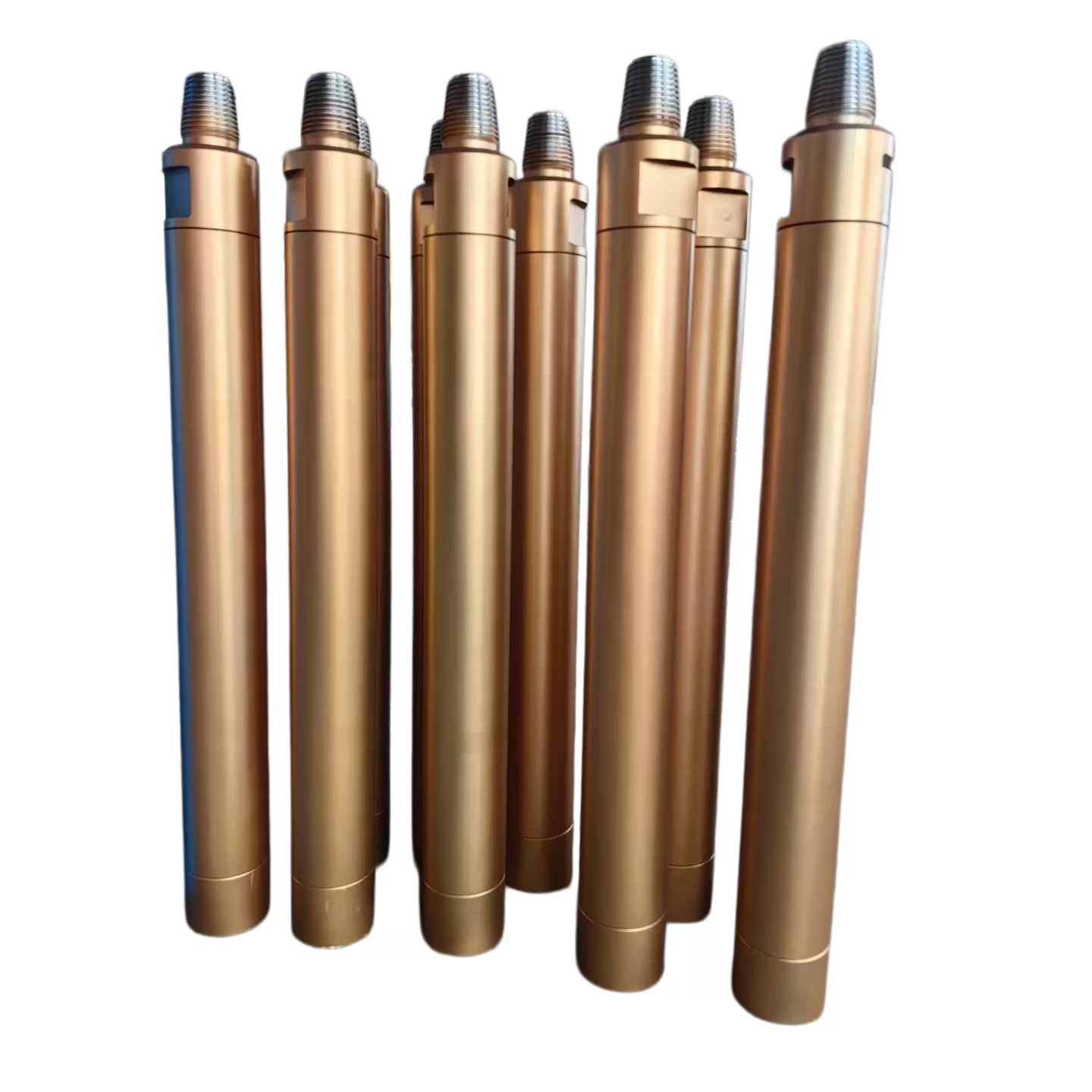

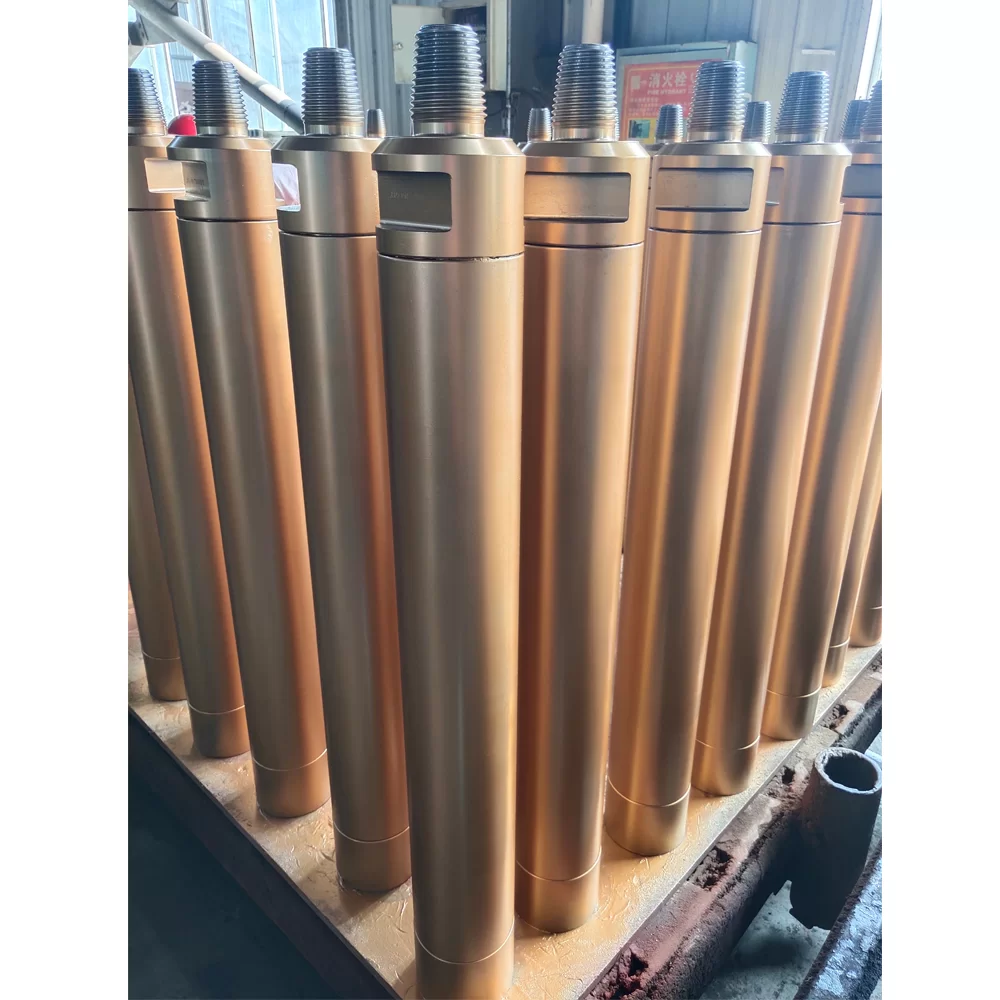

YH 6INCH DTH HAMMER

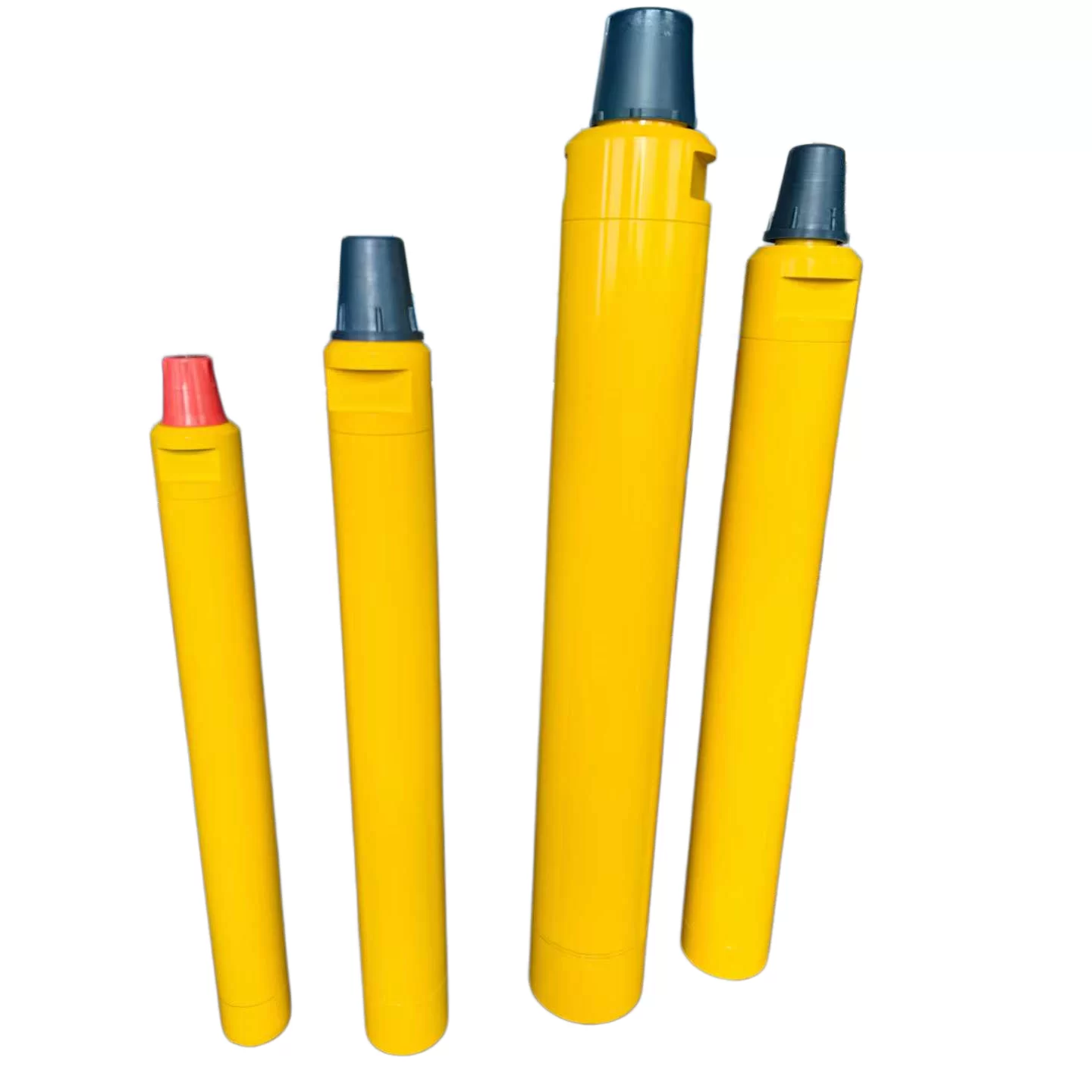

We offer a wide range and versatile of high pressure DTH hammers from 2inch to 28inch. Hammers are a variable for down hole and blast hole applications and use in nearly all ground conditions.

Like all of other DTH hammers, the 6 inch DTH hammer maintains excellent operation pressure and extend service life and overall is the tool you require to get the maximum out off all your equipment.

Features

· Patented features maximize energy output and reduce service requirements.

· Fewer internal components minimize service requirements.

· High frequency design ensures smooth operation

· All critical internal components are heat treated under strict control to maximize tool longevity.
