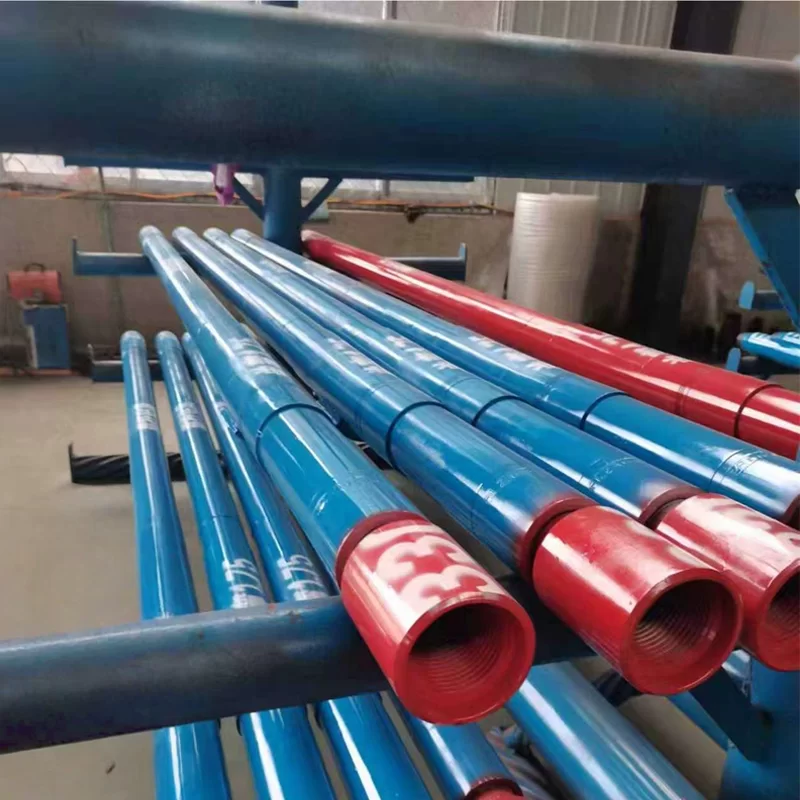

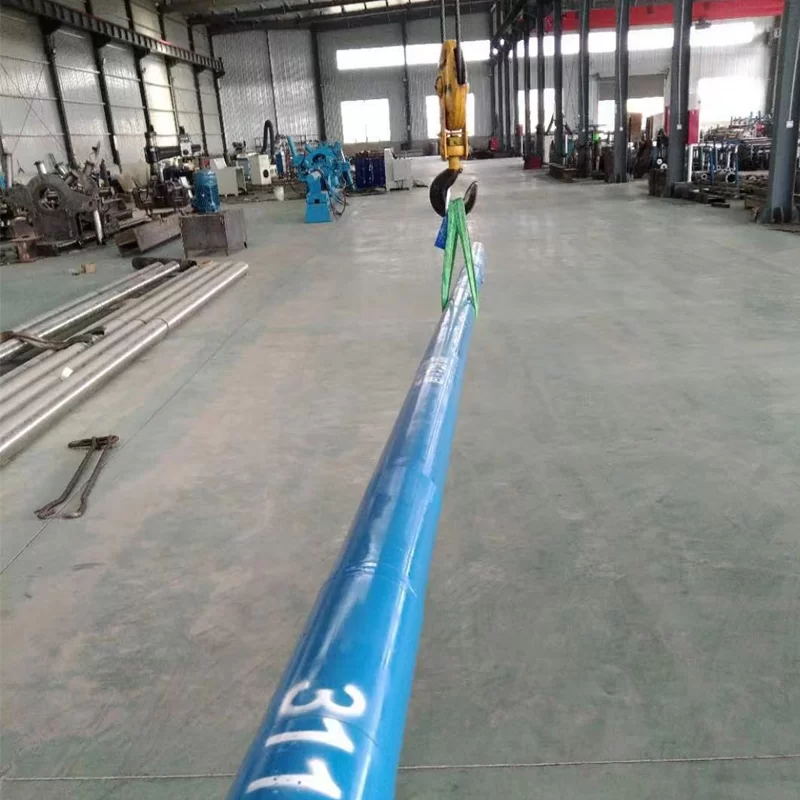

Downhole Motor / Positive Displacement Mud Motor Drilling

Application：Mud motor is also called downhole motor ,used for well drilling, Horizontal directional drilling (HDD)

It can used to match Ditch Witch,Vermeer,Googdeng,Drillto,Forwarder ….Any brand Drill rig .

The thread connection of the mud motor can be designed according to the drill rod(pipe) thread.

The drill rod can be 76mm,89mm,127mm………..

The downhole motor is suitable for high-temperature, high oil base mud system. In the conditions of less than 180°C and high oil, specially formulated stator elastomer owns high retention rates of strong force strength, tear strength and other properties. The oil-resistant elastomer with reasonable magnitude of interference has better using effect in the high-temperature, high oil base mud.

Email info@bitschina.et
WhatsApp +86 15076382950

Send Email Download

Details

Size		5LZ102x7.0	5LZ120x7.0	5LZ165x7.0	7LZ172x7.0	5LZ203x7.0
Lobe		5:6	5:6	5:6	7:8	7:8
Stage		4 Stage	4 Stage	5 Stage	5 Stage	5 Stage
Wellbore size	mm	118～165	149～200	149～200	213～251	251～311
Wellbore size	in	45/8～61/2	57/8～77/8	83/8～97/8	83/8～97/8	97/8～121/4
Thread connection	front end	31/2REG	31/2REG	41/2REG	41/2REG	65/8REG
Thread connection	After end	NC31	NC38	NC50	Nc50 / 51/2FH	65/8FH / REG
Flow Rate	L/s	7～15	9～16	19～30	20～32	22～40
Rotary Speed	r/min	80～160	90～180	90～170	80～160	90～170
Working Pressure	Mpa	3.5	4.0	4.0	4.0	4.0
Working Torque	N.m	1760	2200	5500	6600	10000
Max Torque	N.m	2200	4500	8500	10500	14000
Output Power	Kw	11-21	12-30	48-88	51-96	60-122
Length(mm)	Single bend 1.75°	4300	5500	7800	7800	8100
Weight	Kg	210	520	950	1020	1510

The Characteristics of HDD Hole Opener

Provide rotational and propulsion power: The mud motor utilizes the fluid power of the liquid to transmit force, achieving the functions of rotational driving and mud discharge. By converting hydraulic energy into mechanical energy, the mud motor can transmit power to the drill bit to drive drilling operations.

Structure and working principle: The mud motor is mainly composed of rotating chambers and other components. When the mud or liquid on the drill pipe passes through the rotating chamber of the mud motor, the liquid is subjected to a certain fluid dynamic force, which drives the operation of the motor. Specifically, after the mud enters the mud motor, it forms a screw shape in the rotating chamber, thereby achieving the functions of rotational driving and mud discharge.
